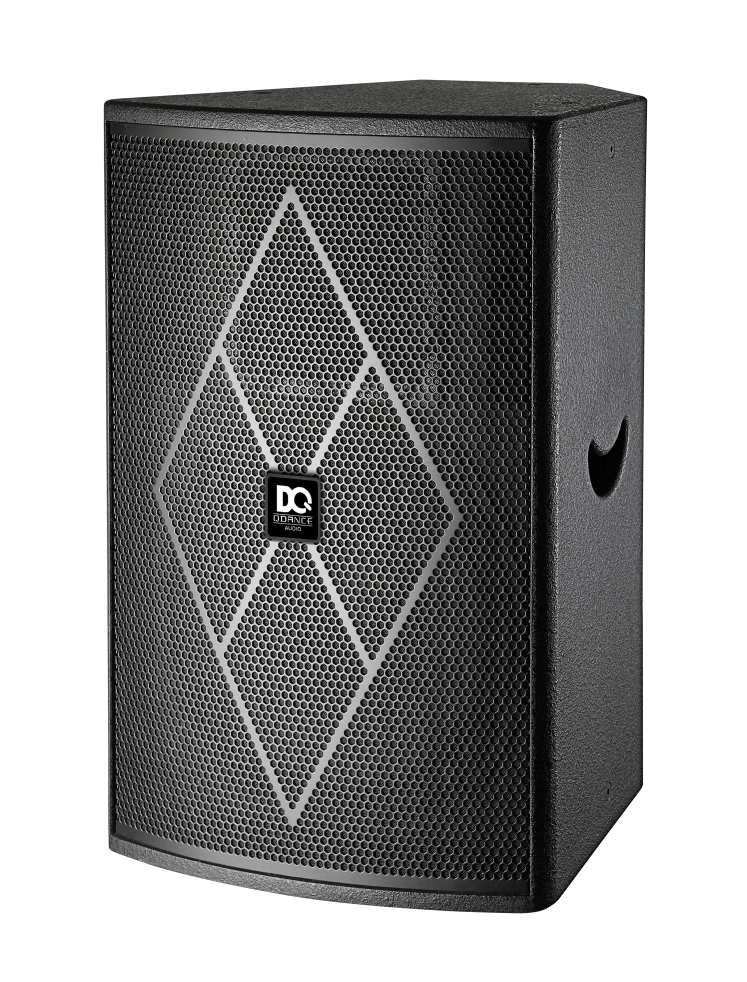

￭  型号 Model:PH-15

￭  声学性能Acoustic design:15"Passive loudspeaker,2-way

￭  配置Components:HF1×3"(75mm) driver,LF1×1.75"(75mm)

￭  频率响应Frequent y range:45Hz-20KHz(±3dB)

￭  额定功率Power rating (RMS/Peak 10ms):600W

￭  灵敏度Sensitivity(1w at 1m):97dB

￭  最大声压级Maximum SPL1m:126db(RMS)

￭  标称阻抗Nominal impedance:8Ω

￭  覆盖角度Nominal dispersion angle: 60°×90°

￭  连接器Connections:2×NL4音箱座

￭  尺寸Dimensions (H×W×D):690mm×472mm×443mm

￭  重量Weight:29Kg
