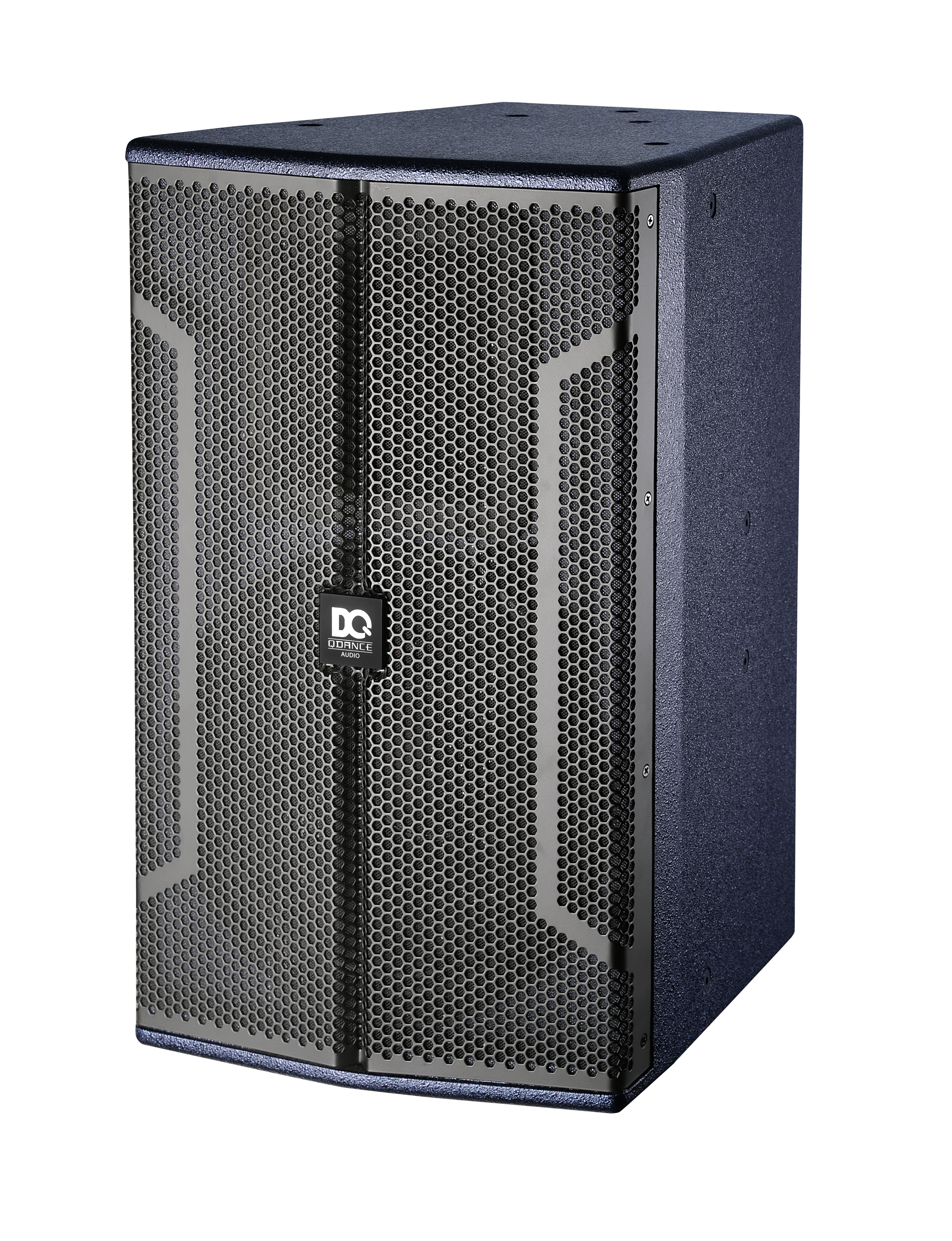

￭  型号 Model:PH-10S

￭  声学性能Acoustic design:10"Passive loudspeaker,2-way

￭  配置Components:HF1×1.75"(44mm) driver,LF1×10"(75mm)

￭  频率响应Frequent y range:55Hz-19KHz(±3dB)

￭  额定功率Power rating (RMS/Peak 10ms):350W

￭  灵敏度Sensitivity(1w at 1m):97dB

￭  最大声压级Maximum SPL1m:123db(RMS)

￭  标称阻抗Nominal impedance:8Ω

￭  覆盖角度Nominal dispersion angle: 70°×90°

￭  连接器Connections:2×NL4音箱座

￭  尺寸Dimensions (H×W×D):553mm×300mm×340mm

￭  重量Weight:16.3Kg

￭  型号 Model:PH-12S

￭  声学性能Acoustic design:12"Passive loudspeaker,2-way

￭  配置Components:HF1.75"(44mm) driver,LF1×12"(75mm)

￭  频率响应Frequent y range:50Hz-20KHz(±3dB)

￭  额定功率Power rating (RMS/Peak 10ms):450W

￭  灵敏度Sensitivity(1w at 1m):98dB

￭  最大声压级Maximum SPL1m:125db(RMS)

￭  标称阻抗Nominal impedance:8Ω

￭  覆盖角度Nominal dispersion angle: 70°×90°

￭  连接器Connections:2×NL4音箱座

￭  尺寸Dimensions (H×W×D):600mm×363mm×384mm

￭  重量Weight:20.6Kg
