￭  型号 Model:DM-10

￭  声学性能Acoustic design:10"Passive loudspeaker,2-way

￭  配置Components:HF1×1"(34mm) driver,LF1×10"(50mm)

￭  频率响应Frequenty range:55Hz-20KHz(-10dB)

￭  额定功率Power rating (RMS/Peak 10ms):300W/1200W

￭  灵敏度Sensitivity(1w at 1m):95dB

￭  最大声压级Maximum SPL1m:120dB(Continuous);126dB(Peak)

￭  标称阻抗Nominal impedance:8Ω

￭  覆盖角度Nominal dispersion angle(HxV):90°×50°

￭  连接器Connections:2×Speakon NL4

￭  尺寸Dimensions (H×W×D):492mm×309mm×346mm

￭  重量Weight:16.3Kg

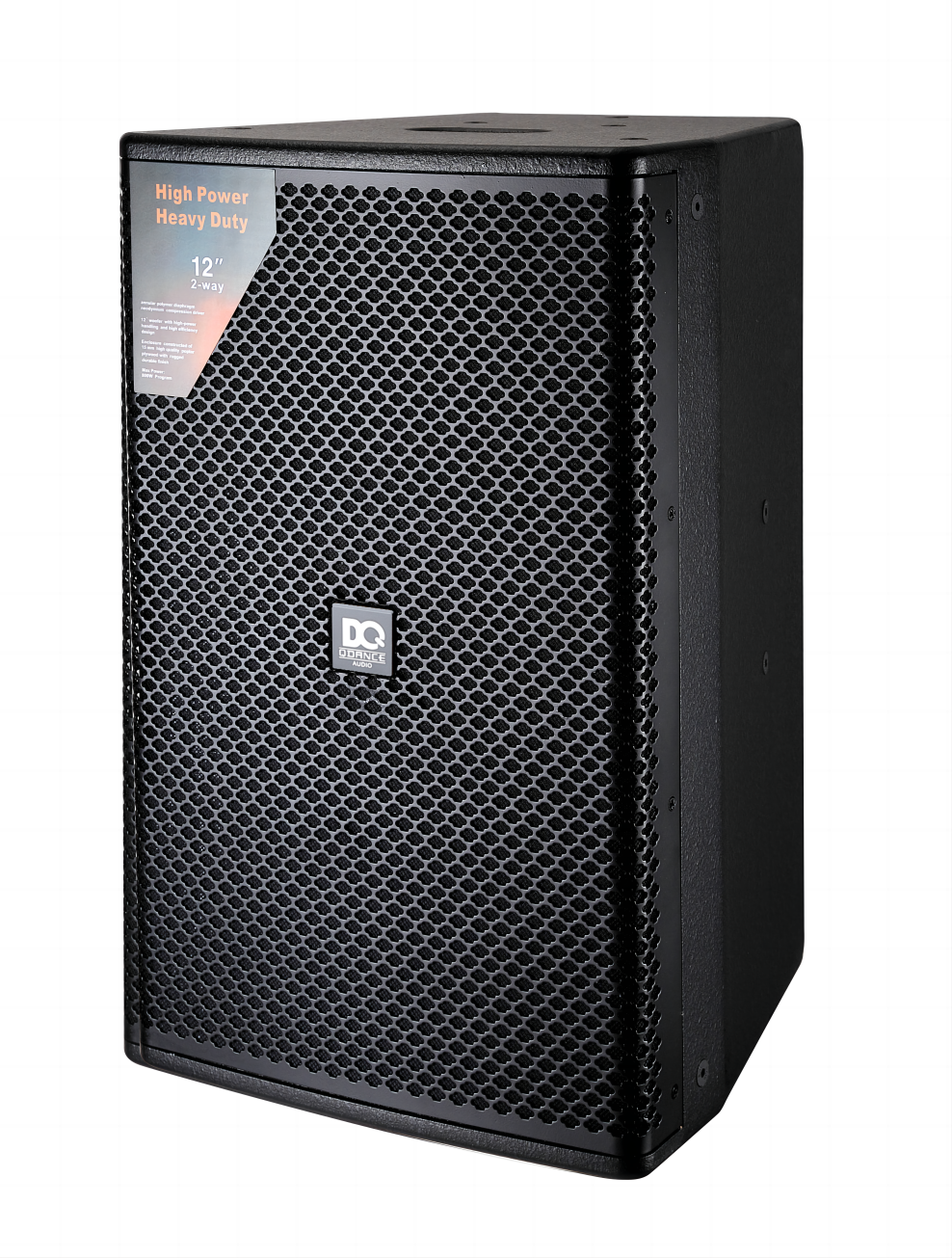

￭  型号 Model:DM-12

￭  声学性能Acoustic design:12"Passive loudspeaker,2-way

￭  配置Components:HF1×1.4"(44mm) driver,LF1×12"(65mm)

￭  频率响应Frequenty range:50Hz-20KHz(-10dB)

￭  额定功率Power rating (RMS/Peak 10ms):400W/1600W

￭  灵敏度Sensitivity(1w at 1m):96dB

￭  最大声压级Maximum SPL1m:122dB(Continuous);128dB(Peak)

￭  标称阻抗Nominal impedance:8Ω

￭  覆盖角度Nominal dispersion angle(HxV):90°×50°

￭  连接器Connections:2×Speakon NL4

￭  尺寸Dimensions (H×W×D):580mm×384mm×406mm

￭  重量Weight:24.5Kg
